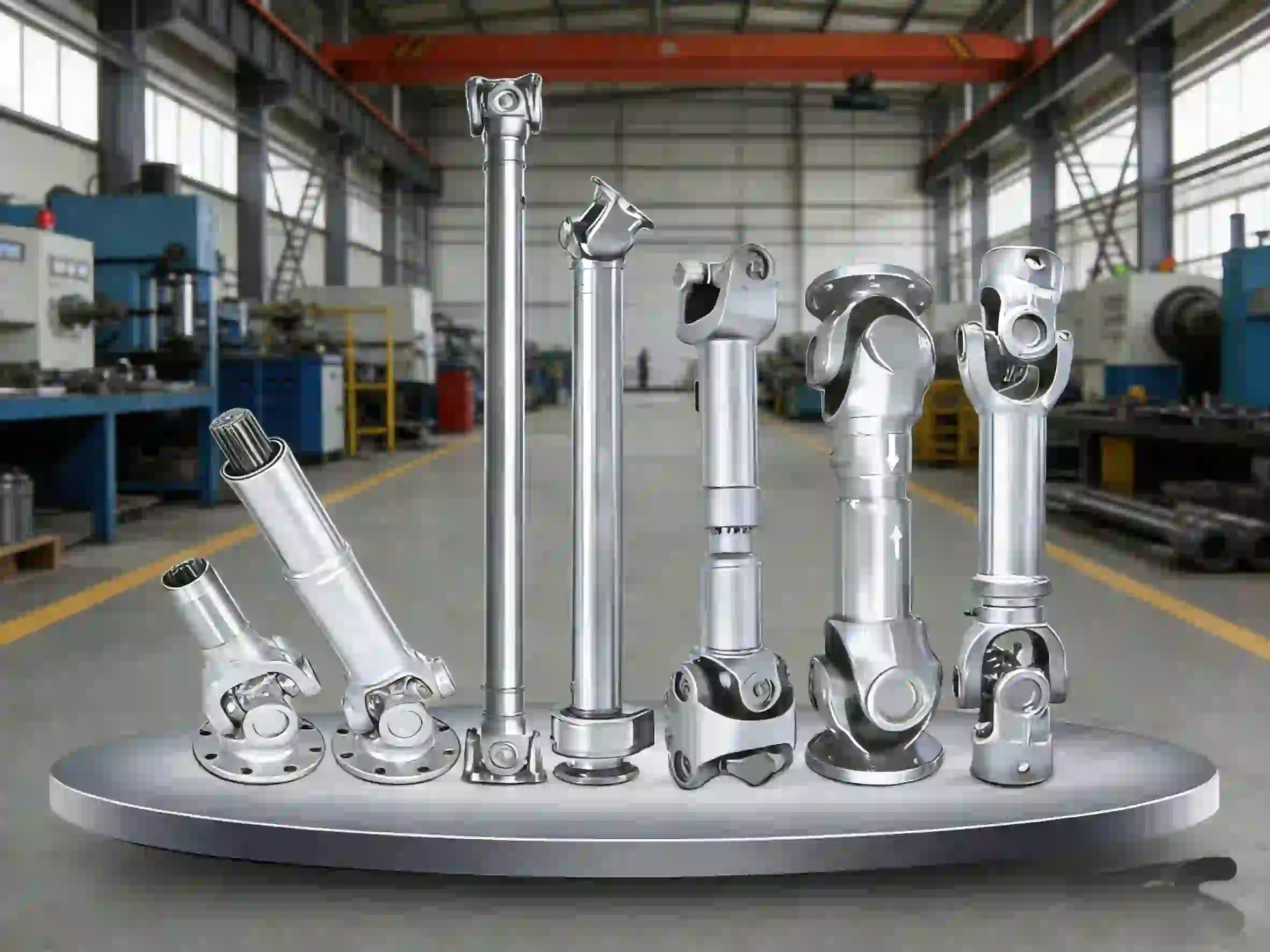

Heavy-Duty Anchor Winch Drive Shafts
Marine-grade power transmission engineered for Australia’s harshest coastal environments.
Marine Engineering Excellence: The Heart of the Winch
In the maritime operations across the Great Barrier Reef, the Bass Strait, and the busy ports of Sydney and Fremantle, the Anchor Winch is a non-negotiable safety component. The drive shaft serves as the critical link between the hydraulic or electric motor and the drum, bearing the immense strain of vessel weight against tide and wind. For Australian operators, mechanical failure during anchoring isn’t just an inconvenience—it’s a risk to vessel integrity and environmental safety. Our engineering focuses on high-torque resilience and absolute corrosion resistance to ensure your winch performs when the conditions are at their worst.
Performance Requirements for Winch Drive Shafts
Drive shafts for Australian anchor winches must maintain structural integrity under extreme shock loads during “break-out” (lifting the anchor from the seabed). Performance criteria include: Static Torque capacity of up to 450,000 Nm, Corrosion Class C5-M for high-salinity exposure, and Torsional Elasticity to absorb sudden cable snapping forces. They must operate flawlessly in temperatures ranging from tropical North QLD heat to Southern Ocean chills, supporting angular misalignment up to 15 degrees during hull flex events.
Operational Scenarios: Anchor Winches in Australia
1. Commercial Port Tug & Barge Operations
In the high-traffic ports of Port Hedland and Newcastle, tugboats and barges utilize vertical anchor windlasses. These systems require drive shafts with Zero-Backlash precision to prevent cable slack during precise positioning. Our AU-Marine Series features splines treated with specialized low-friction coatings, ensuring smooth engagement even after months of exposure to corrosive salt spray on the deck.
2. Offshore Supply Vessels (OSV) in the Bass Strait
OSVs serving oil platforms face the brutal swell of the Southern Ocean. The anchor winch drive shafts must compensate for significant hull-to-deck deflection. We provide Wide-Angle Cardan Shafts that maintain constant velocity power transfer even when the winch drum and drive motor are forced out of alignment by 12 degrees due to vessel stress. This prevents joint binding and catastrophic failure in heavy seas.
3. Coastal Resource Mining & Reclamation
For dredging and reclamation projects in Queensland, winches are used for spud positioning and heavy anchor placement. These winches operate in abrasive, silty environments. Our shafts are fitted with Triple-Lip Hermetic Seals that keep sand and grit out of the universal joints, extending maintenance intervals by 300% compared to standard industrial shafts used in marine settings.
Technical Matrix: Winch Drive Shaft Interchangeability
| Model series | Rated Torque (Nm) | Marine Coating | Typical Winch Application |
|---|---|---|---|
| AU-W-250HD | 25,000 | Epoxy Ceramic | Tugger Winches / Mooring |
| AU-W-800V | 80,000 | Thermally Sprayed Zinc | Heavy Cargo Anchor Windlass |
| AU-W-4500X | 450,000 | Inconel Cladding (Joints) | Deep Sea Anchor Handling |
Market Notice: Australian maritime operators often utilize winch systems featuring shafts from Rolls-Royce Marine, MacGregor, or Palfinger. While we recognize the quality of these global brands, AU driveshaftjoint.com Co.,Ltd does not sell original equipment from these manufacturers. Instead, we engineer high-performance, marine-certified alternative shafts that exceed the original specifications for the Australian environment, often with 50% shorter lead times for local fleet maintenance.
Strategic Advantages for Australian B2B Partners
Eradicating “Salt Fatigue”
Traditional shafts rust and seize in 12 months. Our B2B clients receive shafts with marine-grade stainless internals and specialized non-seize splines, doubling component life in coastal ports.
Local Australian Inventory
Waiting for European parts can ground a vessel for weeks. We maintain a strategic stock in Sydney (Condell Park) to ensure rapid response for emergency winch repairs.
Custom Engineering Support
No two winches are identical. Our engineers provide CAD-ready drawings and on-site measurement consultations to ensure 100% fitment first time, every time.
Winch Drive Success: Real-World Australian Results
Tugboat Fleet Upgrade in Port Hedland, WA
A major port service provider in Western Australia was experiencing premature universal joint failure on their winch fleet due to the high-frequency vibrations from continuous towing operations. The iron-ore dust combined with seawater spray was creating a grinding paste that decimated standard bearings. AU driveshaftjoint.com Co.,Ltd designed a “Shielded-Core” cardan shaft with custom-machined dust covers and high-viscosity marine grease. Following the installation across six vessels, the operator reported zero mechanical stoppages for 24 months. The cost savings in avoided downtime and emergency technician call-outs alone were estimated at $45,000 per vessel per year. Our solution proved that localized engineering can overcome the harshest environmental challenges of the Pilbara coastline.
Bass Strait Supply Vessel Retrofit
In the turbulent waters of the Bass Strait, an offshore supply ship’s anchor winch drive shaft snapped during a heavy storm while attempting to hold position. The original shaft lacked the torsional elasticity to handle the shock load of a 10-meter swell. Our team engineered a hybrid-alloy replacement shaft with a “Torsion-Flex” mid-section specifically designed to absorb 20% more energy than standard steel. We manufactured and balanced the shaft to G6.3 standards at our Sydney facility and delivered it via air-freight to Melbourne within 7 days. The vessel captain reported a significant reduction in gearbox noise and a much smoother anchoring experience during subsequent operations in Gale Force 8 conditions, highlighting the importance of stress-profile engineering.
Coral Reef Research Vessel, Cairns QLD
A scientific research vessel operating in the Great Barrier Reef required a high-precision, low-vibration winch for deploying sensitive sonar equipment. The traditional drive shaft was causing magnetic interference and vibration that distorted data. We supplied a custom-engineered 316L stainless steel shaft with ceramic internal bearings and non-magnetic components. This unique “Clean-Drive” system allowed the researchers to deploy their sensors while the winch was in operation without any electronic “noise.” This technical breakthrough directly enabled the discovery of new deep-sea coral species by providing the stable platform required for high-definition imaging. By switching to our precision-balanced solution, the vessel was able to achieve its scientific goals with 100% data integrity.
Mining Dredge Reclamation, Gladstone QLD
A large-scale dredging operation in Gladstone faced recurring maintenance shutdowns due to abrasive sand entering the winch drive splines. The environment was so corrosive that standard shafts required greasing every 48 hours to stay operational. We provided our “Sea-Sealed” drive shaft series featuring a specialized vulcanized rubber boot and nitrogen-filled internal chambers to prevent moisture and grit ingress. This maintenance-free solution allowed the dredging company to move from a 2-day greasing cycle to a 6-month inspection cycle. The facility manager reported an 85% reduction in maintenance man-hours and a significant improvement in on-site safety by reducing the frequency of staff working in the hazardous winch-well area, proving the B2B value of our sealed technology.
Trust and Quality Assurance
Our anchor winch drive shafts aren’t just manufactured; they are verified for the Australian maritime regulatory environment. Every component shipped from our Condell Park warehouse includes:
- ✔️ Dynamic Balance Reports: Verified to ISO 1940 standards to protect your bearings and gearboxes.
- ✔️ Material Traceability: Full mill certificates ensuring high-grade alloy integrity.
- ✔️ Load Testing: Destructive and non-destructive testing options to simulate anchor “break-out” forces.
- ✔️ Anti-Corrosion Proof: Salt spray testing documentation for marine-grade coatings.
Frequently Asked Questions
What makes your shafts “Marine Grade” compared to standard industrial shafts?
+
Our marine shafts utilize 316L stainless steel for fasteners, specialized journals with Inconel cladding, and C5-M rated epoxy coatings. This prevents the “pitting” and galvanic corrosion that causes industrial-grade steel to fail prematurely in saltwater environments.
Can you replace a shaft for a European winch manufacturer whose lead time is too long?
+
Yes, this is our specialty. We can manufacture custom shafts to DIN or SAE standards used by European winch makers. By using our Sydney facility, we often reduce lead times from months to weeks.
How do your shafts handle the shock load when an anchor is stuck?
+
We engineer our winch shafts with a higher safety factor (up to 4.5x rated torque) and utilize alloys with higher elongation properties. This allows the shaft to flex slightly under extreme load rather than snapping.
Do you provide on-site measurements for dockside repairs?
+
For Australian port sites, we can provide technical consultation and guide your staff through our digital measurement protocol to ensure precision fitment without the need for expensive site visits.
Are your universal joints sealed or greaseable?
+
We offer both. For winches located in hard-to-reach areas, we recommend our “Maintenance-Free” sealed series. For deck winches exposed to heavy sand/grit, we recommend greaseable units with purging seals.
What is the typical lifespan of an AU driveshaft in a coastal environment?
+
With proper selection of our marine-grade coatings, our shafts typically offer a 10-15 year design life, compared to 3-5 years for standard carbon steel alternatives.
Complete Your Winch Drive Train
To ensure maximum reliability, we recommend pairing our drive shafts with our high-torque Marine Planetary Gearboxes and specialized Hydraulic Motor Adapters. Our engineers can also provide marine-certified Bearing Housings and support brackets to ensure that the entire power transfer assembly is perfectly aligned and capable of withstanding the rigors of Australian offshore operation. Contact us today for a full system compatibility review.
