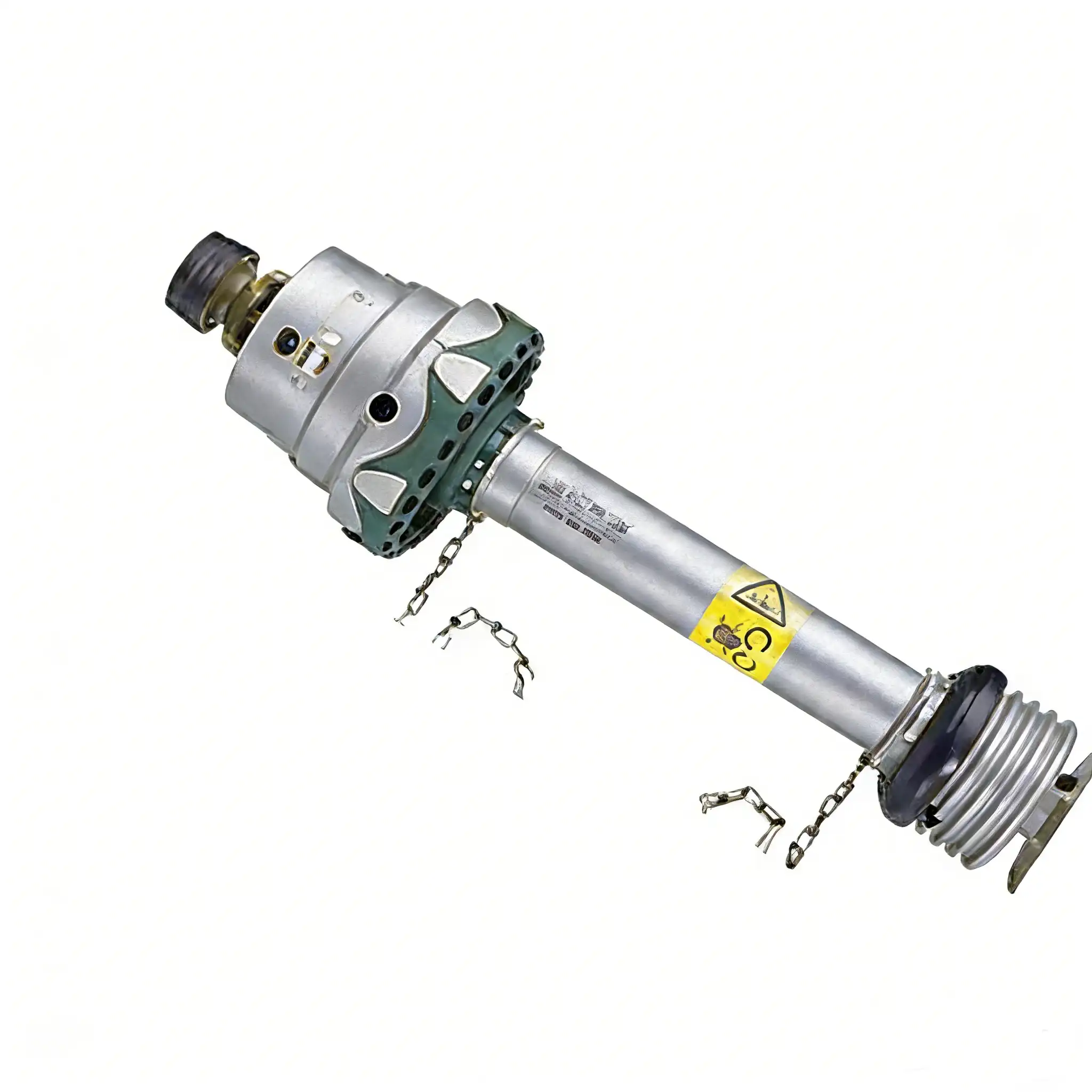

PTO Drive Shaft for Vertical Feed Mixers Introduction
Designed for PEECON vertical feed mixers, this heavy-duty PTO drive shaft delivers reliable power transfer from tractors to your equipment. Built for durability and smooth operation, it supports efficient feed mixing while reducing wear on components. Ideal for commercial farms and machinery distributors seeking high-performance driveline solutions.
We not only offer pto shafts but also provide CV joint boot repair kits. Click below to learn more.
Agricultural PTO Drive Shaft for Feed Mixers
PTO Drive Shaft for PEECON Vertical Feed Mixers Model
| 2500 Series Automatic Cutout Clutches | ||||
|---|---|---|---|---|
| Part Number | Model | Diameter | Splines | Torque |
| 134467 | K64/24 | 1.750 | 20 | 3500nm |
| LAF20250MDAL67 | K64 | 1.750 | 20 | 2500nm |
| 135416 | K64/24 | 1.375 | 6 | 2700nm |
| 135362 | K64/24 | 1.750 | 6 | 2700nm |
| 135986 | K64/24 | 1.750 | 20 | 2700nm |
| 2500 Series Shear Bolt Yokes | ||||
|---|---|---|---|---|
| Part Number | Model | Diameter | Splines | Torque |
| BTL67214810A | KB61 | 1.375 | 21 | |
| BTL67385610A | KB61 | 1.375 | 6 | 2920nm |
| 355272 | KB61/2 | 1.375 | 6 | 2920nm |
| 4250104 | KB61/2 | 1.375 | 6 | 2920nm |
| BTL67205610A | BTL | 1.750 | 20 | 2920nm |
| 4250105 | KB61/2 | 1.750 | 20 | 2920nm |
| BTL67345610A | KB61 | 1.750 | 6 | 2920nm |
| 338427 | KB61/2 | 1.750 | 6 | 2920nm |
| 392340 | KB61/2 | 1.9375 RD | 0.50 KEY | |
We not only supply the power output shaft for vertical feed mixers, but also provide all the spare parts for feed mixers.
| MODEL | CAPACITY | # OF AUGERS | MIN. POWER REQUIREMENTS |
|---|---|---|---|
| 865 | 865 CFT | 2 | 95 hp |
| 1100 | 1100 CFT | 2 | 135 hp |
| 1300 | 1300 CFT | 3 | 180 hp |
| 1500 | 1500 CFT | 3 | 200 hp |
PTO Drive Shaft for Vertical Feed Mixers Maintenance Guide
| Maintenance Item | Details / Schedule |
|---|---|
| Cross & Bearings | Apply high-quality lithium grease every 8-10 hours of operation. |
| Telescoping Tubes | After every 20 hours of operation, extend the shaft and evenly apply grease to the inner tube for smooth movement. |
| Guard Bearings | Lubricate every 40 hours to ensure the guard rotates freely independent of the shaft. |
| Easy-Lock Guard System | Regularly remove the guard using the patented quick-release function to inspect for dents or bends in the shaft tube. |
| Clutch Inspection | Check FT clutches for excessive wear or discoloration from heat, ensuring torque limits (e.g., 1000nm) are maintained. |
| Bolt Tightening | Regularly inspect all yoke bolts to prevent loosening from vibration. |
| Seasonal Storage | After harvest, clean the PTO shaft thoroughly, store in a dry place away from sunlight, and grease the entire shaft to prevent corrosion. |
Agricultural Machinery PTO Shaft Cutting and Installation Practical Guide
Preparation Phase
When configuring or replacing a power take-off (PTO) shaft for new agricultural implements, the shaft often needs precise cutting due to variations in spacing between different tractors and implements.
Step 1: Positioning and Measurement
First, mount the implement onto the tractor’s three-point hitch system and adjust it to the working position. Do not connect the PTO shaft at this time.
Use a tape measure to measure the straight-line distance between the tractor’s PTO shaft spline and the implement’s input shaft spline.
Record this value (assume it is $L_d$).
Step 2: Allowing for Safety Clearance (Crucial)
To prevent damage to the universal joint and tractor gearbox due to the PTO shaft binding during operation or lifting, a certain buffer space must be subtracted from the measured value.
1.Recommended clearance: At least 75mm of telescopic clearance should be reserved.
2.Calculation formula: Total length to be cut = Original PTO shaft length – (Measured distance – 75mm).
Practical Example:
Assume the new PTO shaft has a total length of 1000mm, and the measured distance between the tractor and implement is 800mm.
Calculation: $1000 – (800 – 75) = 275mm$.
Conclusion: Both ends of the PTO shaft (inner and outer tubes) need to be cut by 275mm each.
Step 3: Cutting Operation
1.Separation and Disassembly: Pull the PTO shaft completely apart, separating it into two independent inner and outer sections.
2.Marking and Cutting:
- First, measure the length to be cut (e.g., 275mm) on the plastic protective sleeve and mark it.
- Use a hacksaw or angle grinder to cut off the excess plastic sleeve.
- Then repeat the above measurement and cutting steps for the internal steel drive tube.
3.Mirror Operation: Perform the exact same measurement and cutting on the other half of the PTO shaft.
Step 4: Subsequent Processing and Installation
- Deburring: After cutting, be sure to use a file to clean the metal burrs from the end of the steel tube; otherwise, it will hinder the sliding of the inner and outer tubes.
- Lubrication: Before reassembly, apply an appropriate amount of grease to the sliding contact surfaces of the steel tubes.
- Testing: Once smooth sliding is confirmed, the driveshaft can be locked onto the power shafts of the tractor and implement respectively
PTO Drive Shaft for Vertical Feed Mixers Advantages
1.Multi-Model Compatibility, Reducing Inventory Pressure
Compatible with 865, 1100, 1300, and 1500 model mixers, supporting agricultural machinery with different capacity and power requirements.
The same series of PTO shafts can meet the needs of multiple models, reducing inventory and procurement costs.
2.Efficient Power Transmission, Ensuring Operational Efficiency
The PTO shaft supports tractor power output of 95–200hp, ensuring stable operation of the mixer under high load conditions.
Reduces equipment downtime, improves operational efficiency during peak seasons, and directly increases customer profits.
3.Reliable and Durable, Reducing After-Sales Risks
Precisely designed CV PTO shafts and high-quality materials extend service life.
Reduces repair frequency and return/exchange issues, improving customer satisfaction and reputation.
4.Standardized Specifications for Easy Replacement and Maintenance
Key components such as bearings, splines, and universal joints are all standardized, facilitating quick replacement and routine maintenance.
For distributors, after-sales service is simple and allows for quick response to end-user needs.
5.Enhancing Product Competitiveness
Provides stable, high-performance PTO shafts, improving the overall performance of agricultural machinery.
Helps B2B customers highlight the reliability and efficiency advantages of their equipment when selling to end-user farms, increasing market competitiveness.
Heavy-Duty PTO Shaft FAQs
Q1: Which PEECON mixer models is this PTO drive shaft compatible with?
▾
Compatible with all standard PEECON vertical feed mixer models, including 700T–1600T series.
Q2: What is the input shaft size?
▾
YAvailable in 1.375-6 or 1.375-21, matching most tractor PTO configurations.
Q3:Does it come with torque protection?
▾
Yes, options include shear bolt or slip clutch to prevent damage from overload.
Q4:How often should I lubricate this PTO drive shaft?
▾
Cross & bearings every 8–10 hours, telescoping tubes every 20 hours, guard bearings every 40 hours.
Q5:Can this PTO drive shaft be used with other implements?
▾
It’s designed specifically for PEECON vertical feed mixers, other applications may require different specifications.
Customer Feedback
“We installed the PTO drive shaft on our PEECON 1200T, and it works perfectly. Smooth operation and sturdy build—really reliable for daily farm use.” – John M., NSW, Australia
“This PTO drive shaft runs so smoothly that I almost forgot my mixer wasn’t electric! Definitely built for serious work.” – Sarah L., Victoria, Australia
The PTO shaft and agricultural gearbox form a complete power transmission system for tractors and farm equipment. The PTO driveline transfers engine power to the gearbox, enabling stable operation of balers, pumps, tillers, and other implements.
A properly matched PTO shaft helps reduce shock loads, protect drivetrain components, and improve overall machine reliability. Selecting a durable agricultural gearbox with high-quality materials ensures long service life and lower maintenance costs.
